This bow saw is very handy for cutting shapes and other general uses. The frame is made with Hard Maple and the handles and tab are made out of Rosewood.

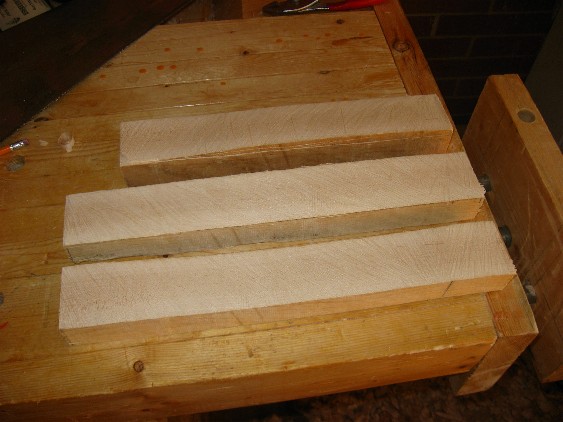

img_1480 I cut two peices for the handles and one for the spreader.

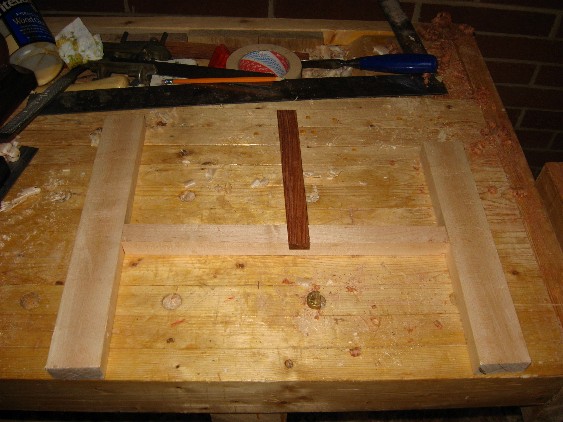

img_1481 Here is a layout before the pieces where cut.

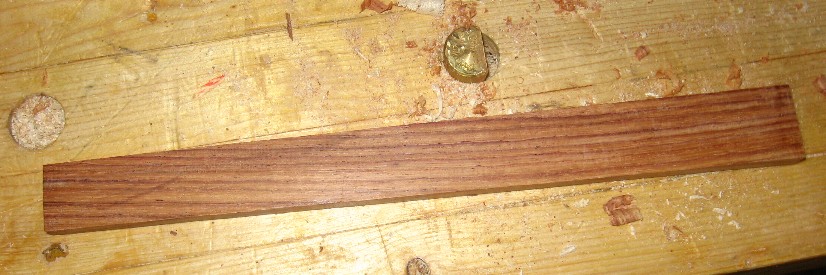

img_1482 The tension tab was cut from Rosewood, and is about 1/4 inch thick.

img_1483 Another view.

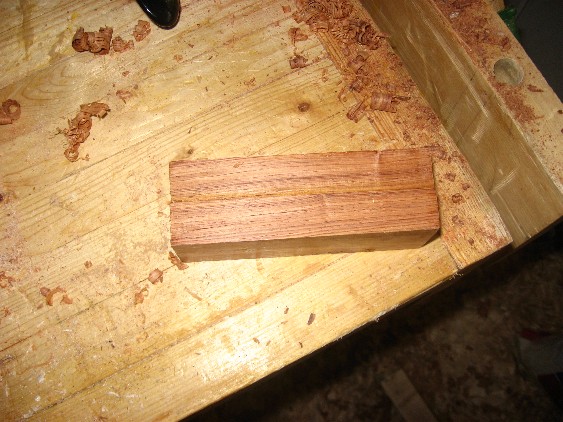

img_1484 The handles where made by laminating two pieces of 3/4 inch thick rosewood to make blocks.

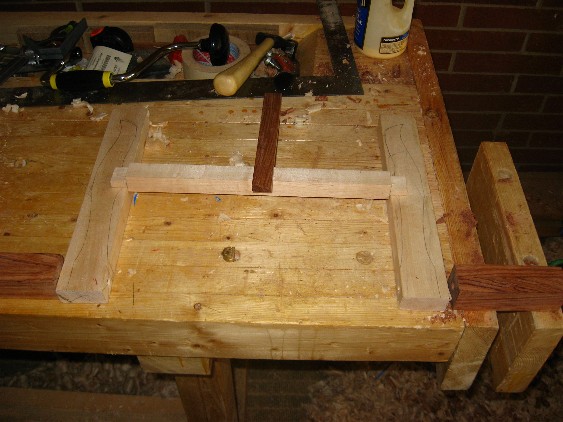

img_1502 The mortis and tenton joints where cut for the spreader before the side pieces where shaped. Also the holes for the blade holder where also drilled. This operation is much easier before the handles have been shaped.

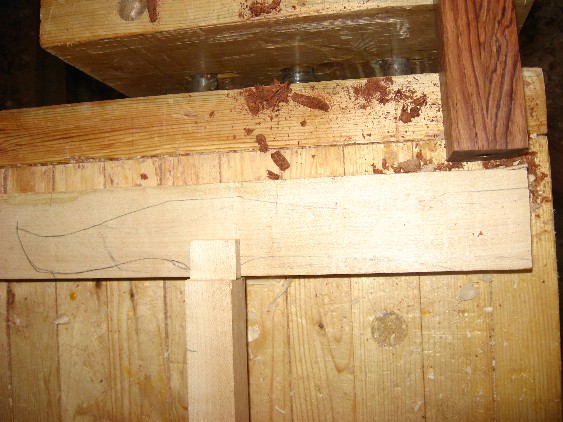

img_1503 Closeup showing layout of pattern on handles.

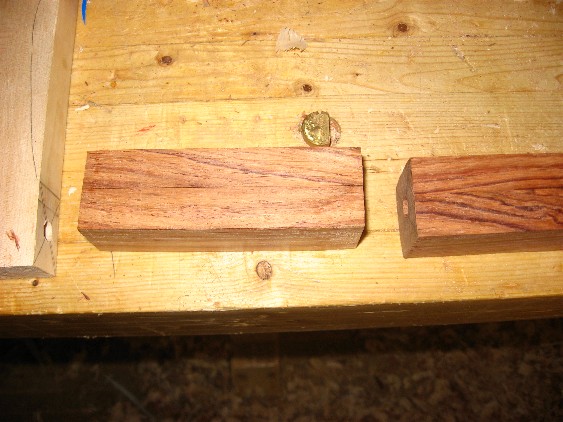

img_1504 Two handles trimmed to correct size after laminating.

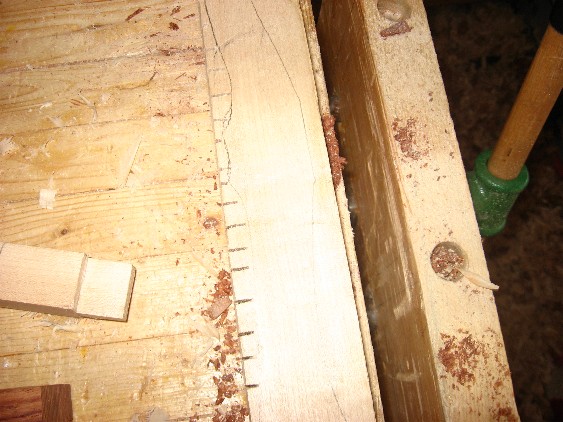

img_1505 I used a backsaw to cut chuncks out and then a chisel to cut alway the waste. This is a perfict job for bowsaw, but harder when you don't have one yet. A coping saw can be used as well.

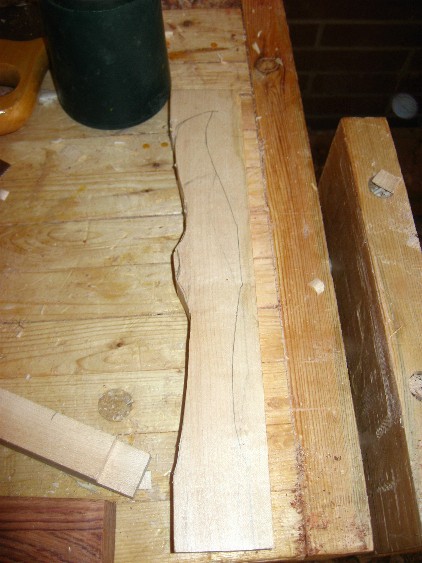

img_1507 I used my spokeshave to clean out and shape handles.

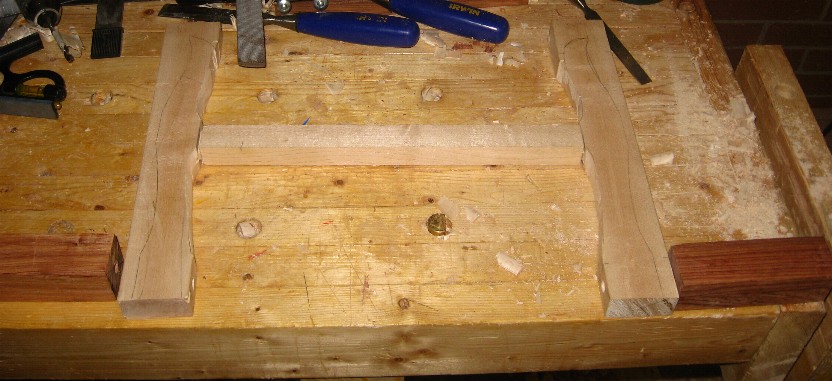

img_1508 Starting to take shape.

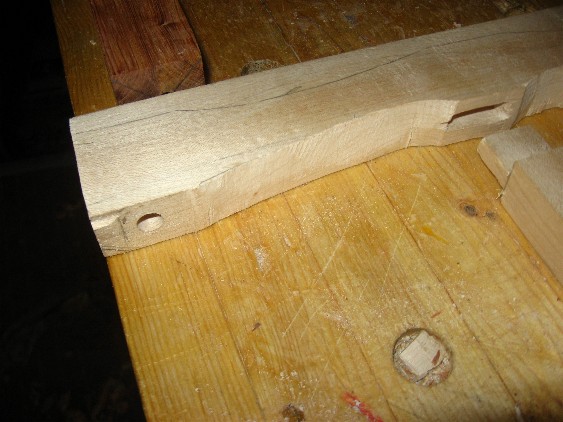

img_1511 Closeup showing mortis and hole for blade holder. Note the mortis for the speader wants to be able to swivel alittle. But there should be no side to side movement.

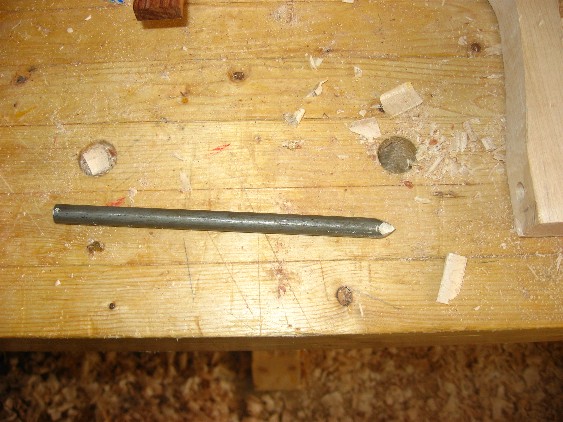

img_1513 I cut a piece of metal rod to lenght and used a file to form a point, this was then hammered into the rosewood handles. Not shown is that I drilled a 1/16" diameter hole about 1 inch back from end of handle. The hole runs through the rod and I used a finishing nail to act as a anchor.

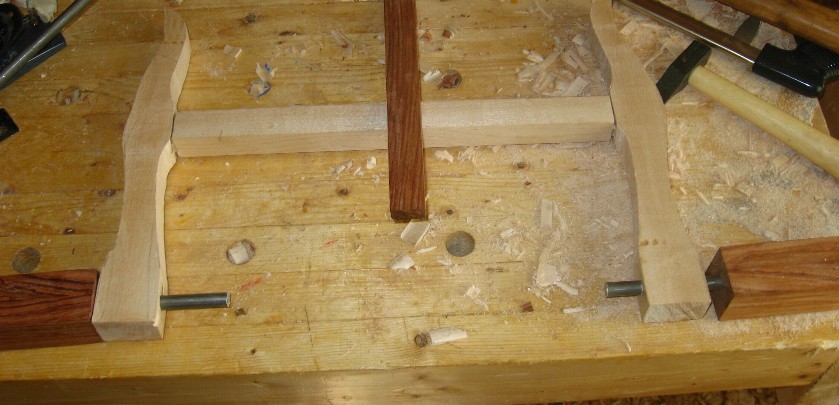

img_1514 Another closeup

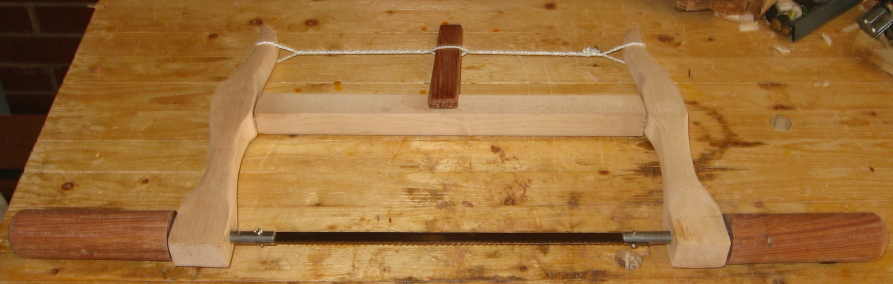

img_1581 Finished product. I used my planes and spokeshave to round off the handles to make them rounded. Also the sides of the handles have been smoothed to make holding easier. Blade is mounded in place with same method as used with my frame saw. The cord is 500lb test dacron line I had.

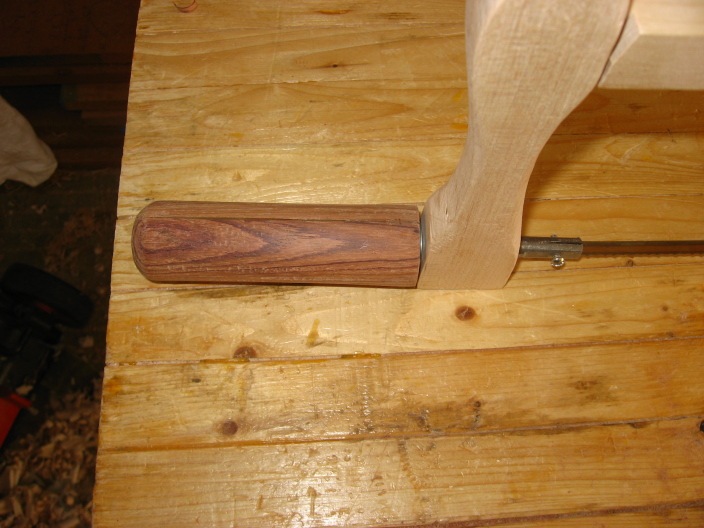

img_1583 Closeup of handle.
