English Garden Bench Page 4

Pages 1|2| 3|4|5

Frame

Fitting pieces

More piece cutting. Here I am working on back rest, slates for back and arms.



Joints part 2

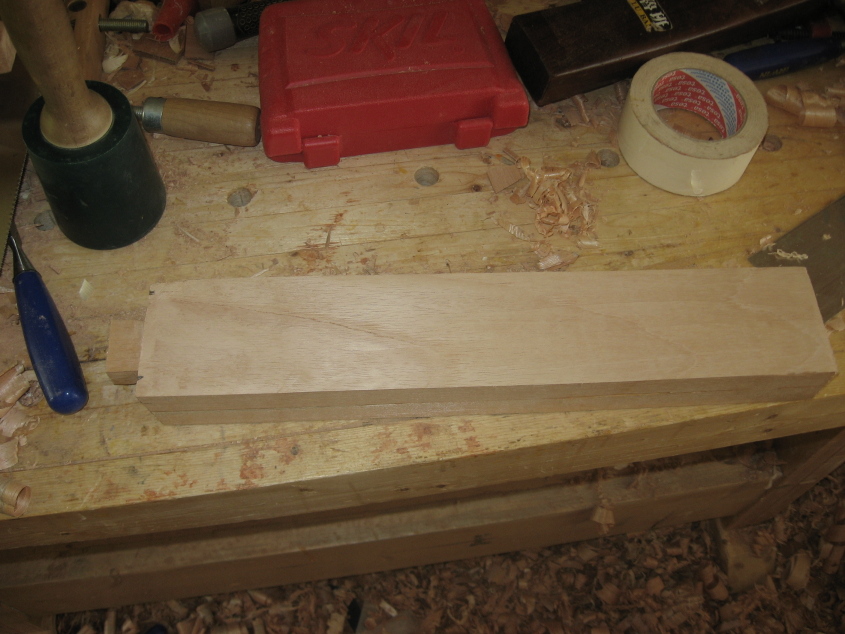

img_1896 Forming the arm rests.

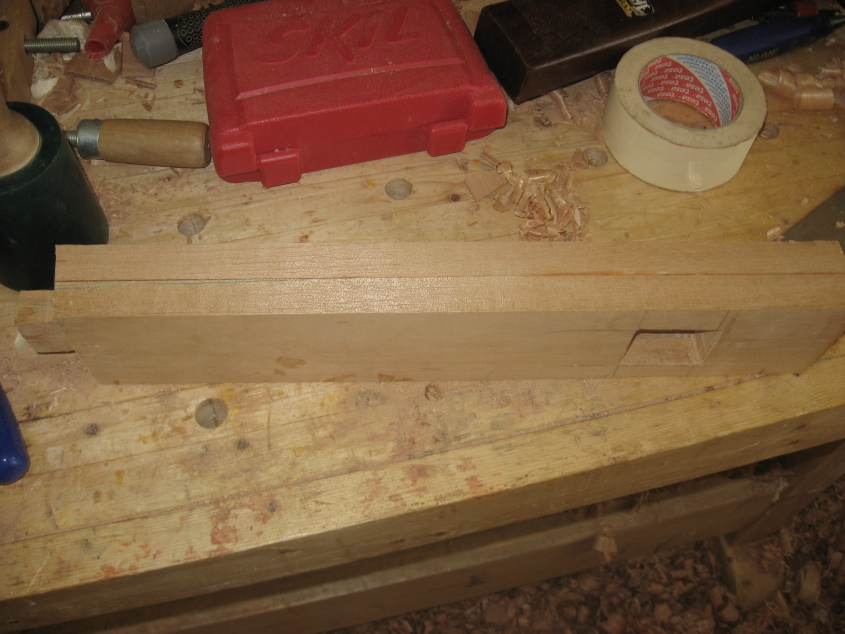

img_1897 Side view.

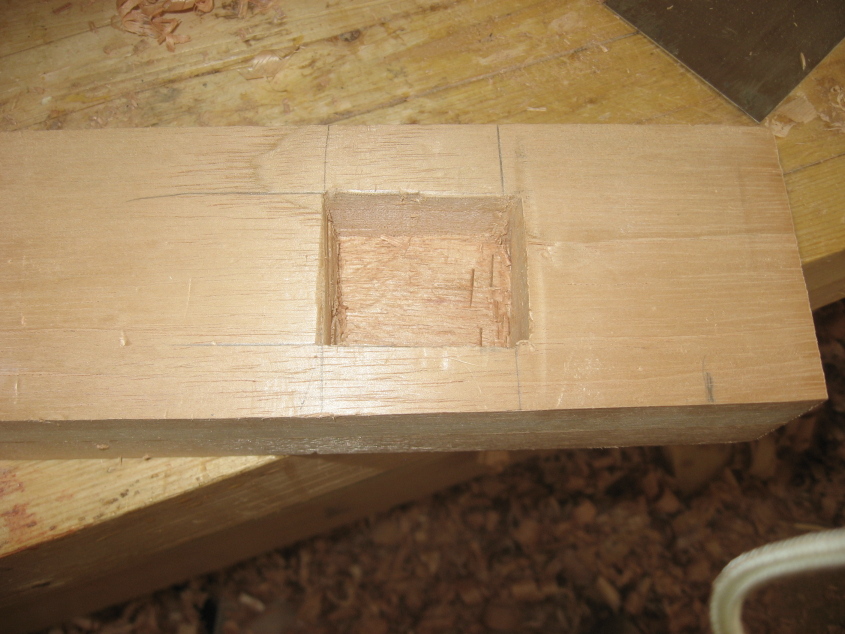

img_1898 Tenion for leg to fit into.

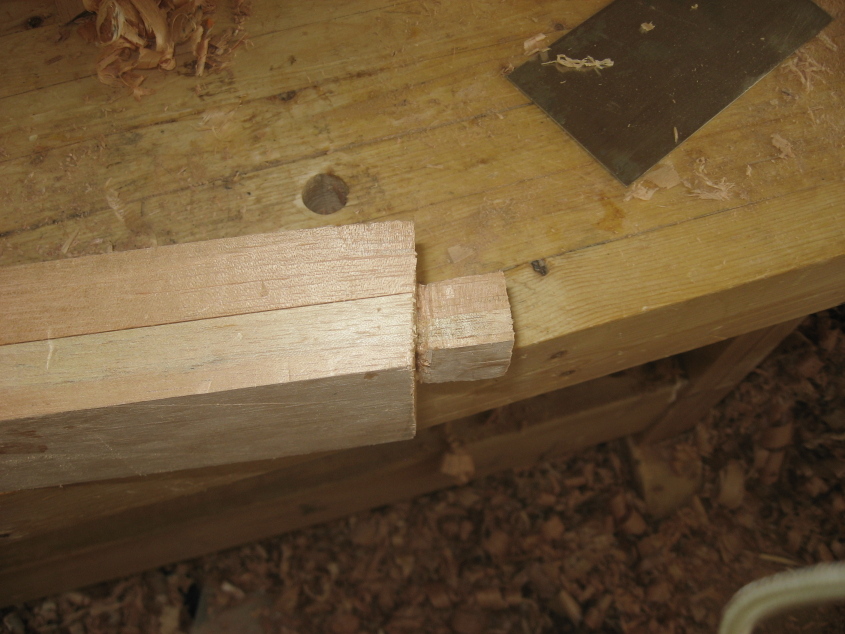

img_1899 Tenion for arm to back leg.

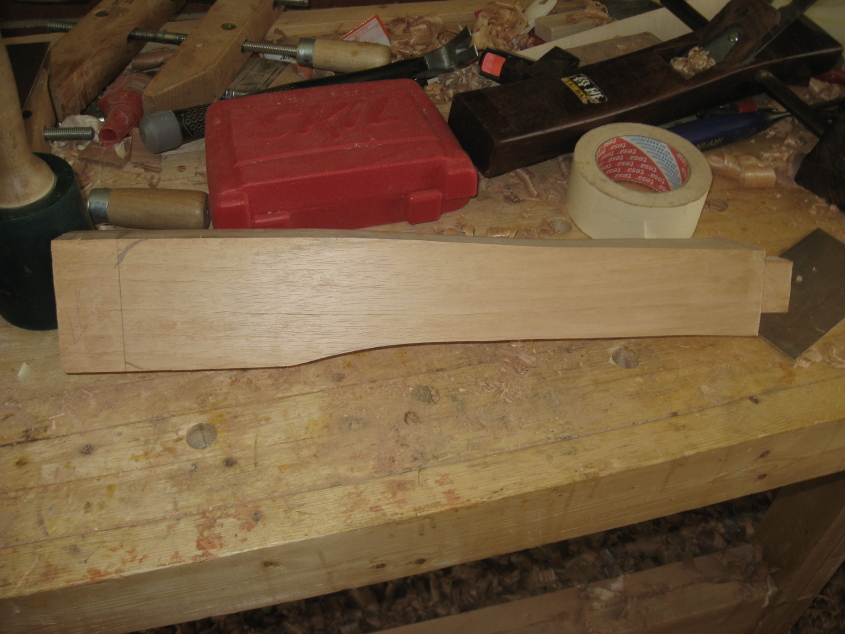

img_1900 Carved arm rest to shape.

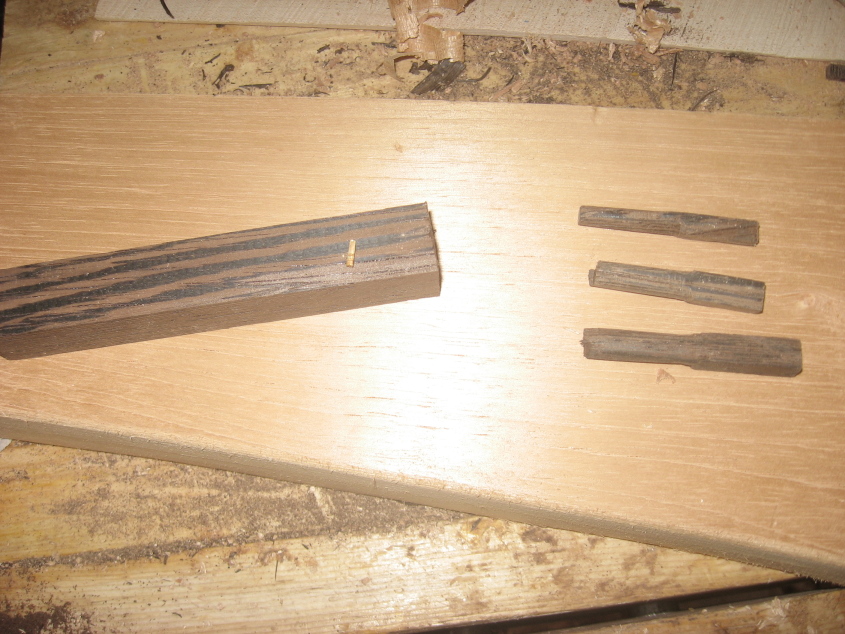

img_1960 I cut pins out of Wenge to hold joints together.

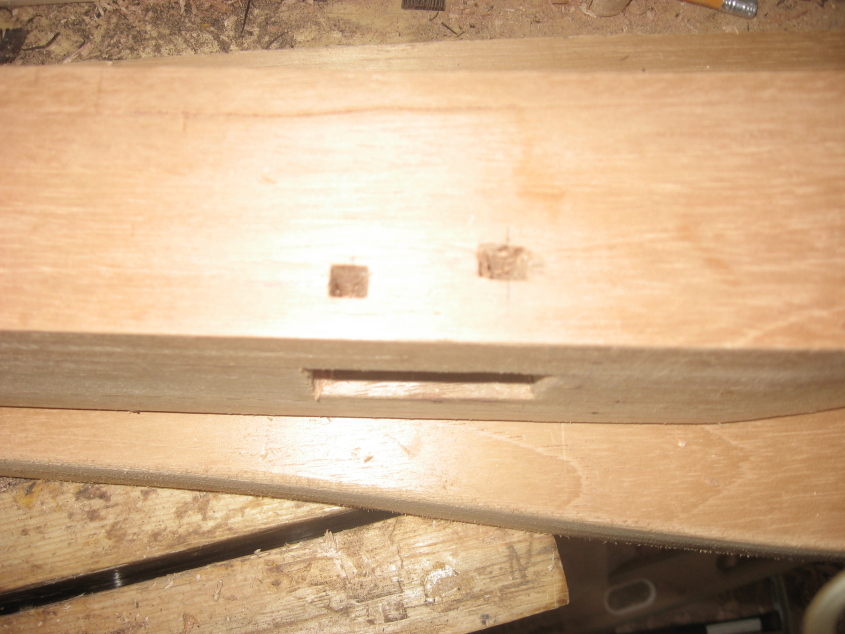

img_1961 The holes for the pins are offset so that they don't split.

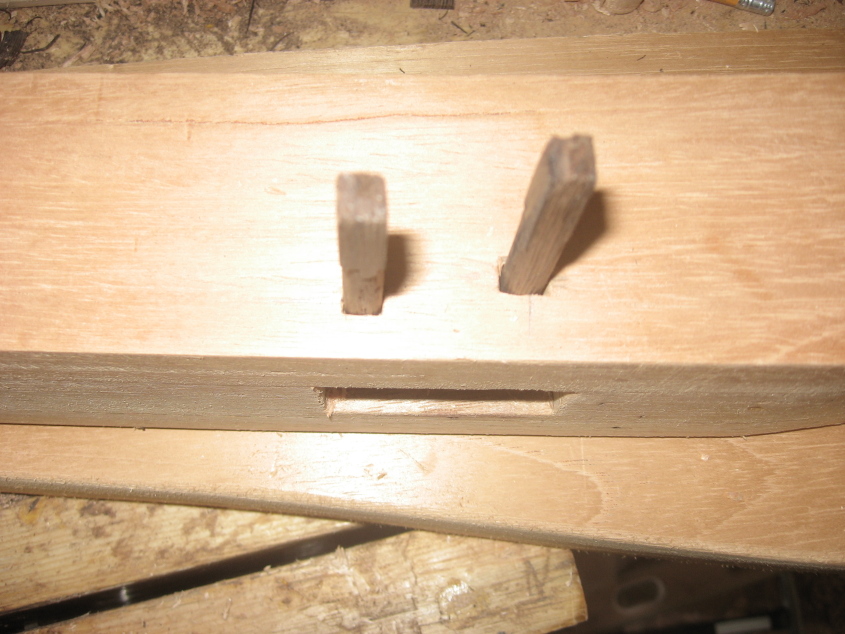

img_1962 Pegs in place.

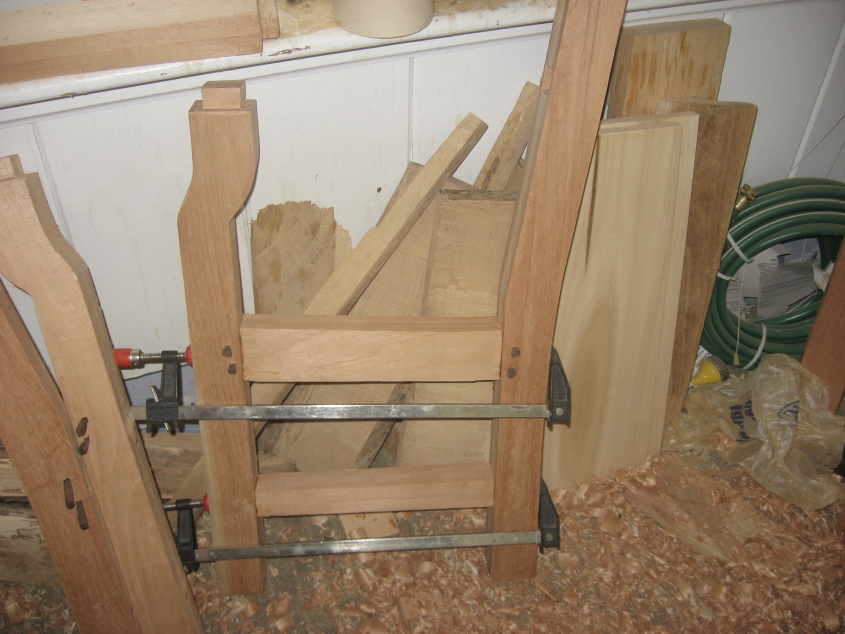

img_1958 Glue-up of sides.

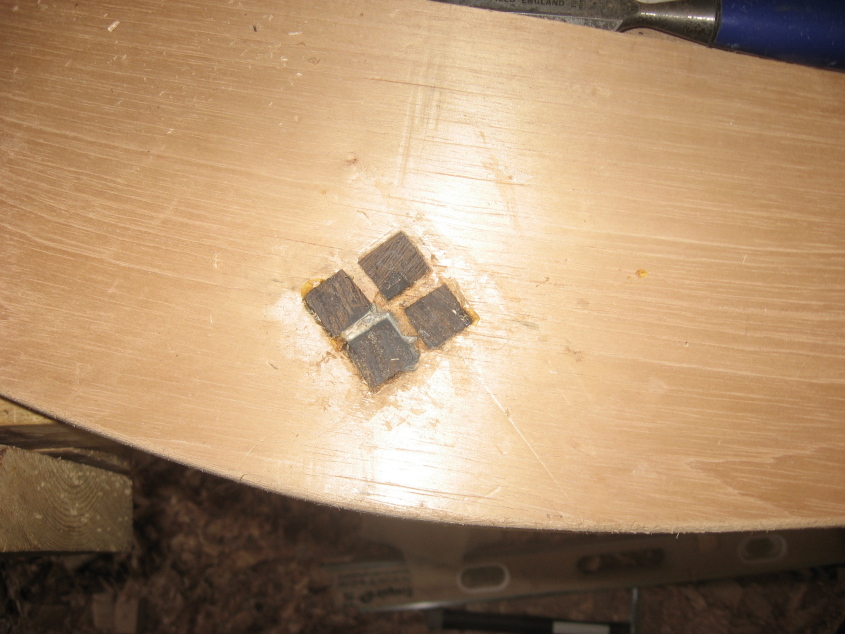

img_1959 Closeup of top inlay before cleanup.

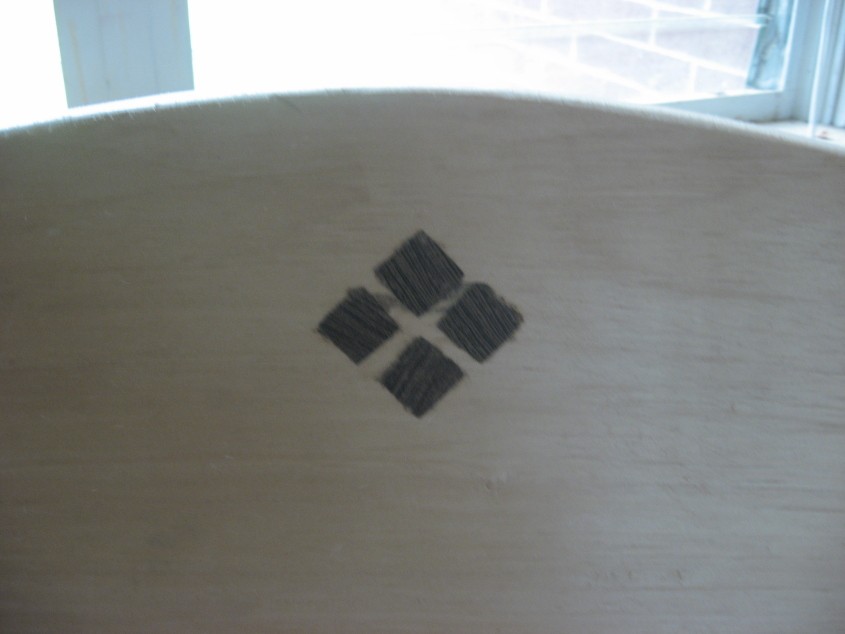

img_1974 Inlay after cleanup.

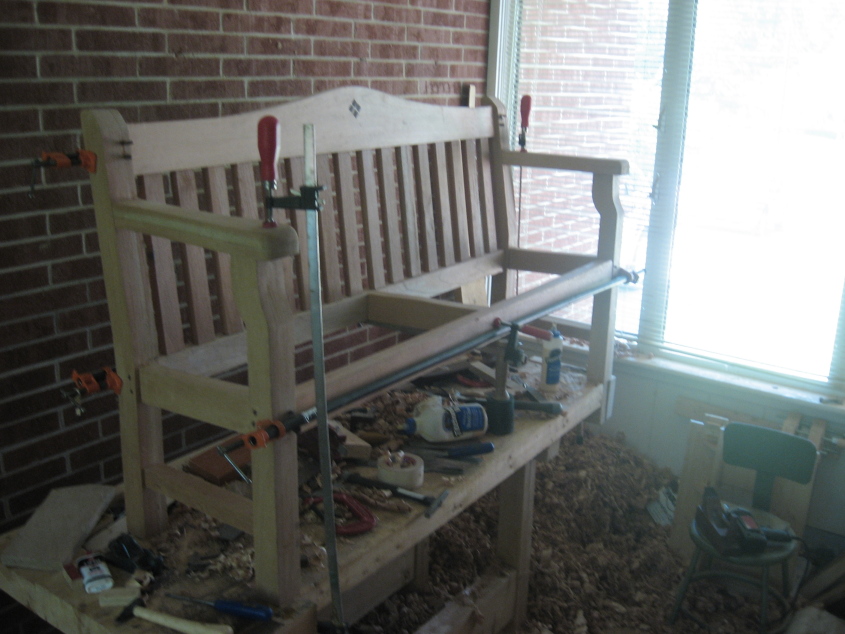

img_1963 Glue up of main part of bench.

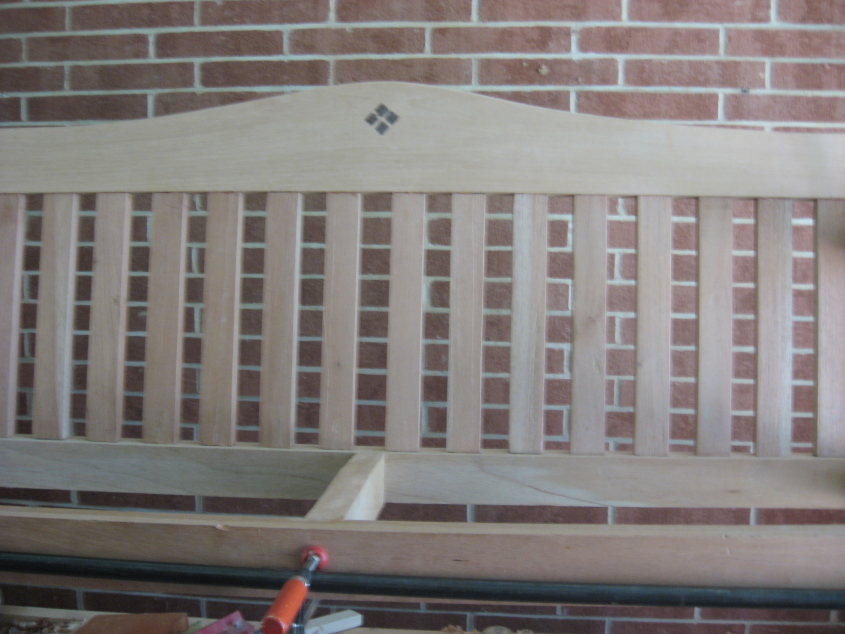

img_1964 Another view. a angled tenon joint.

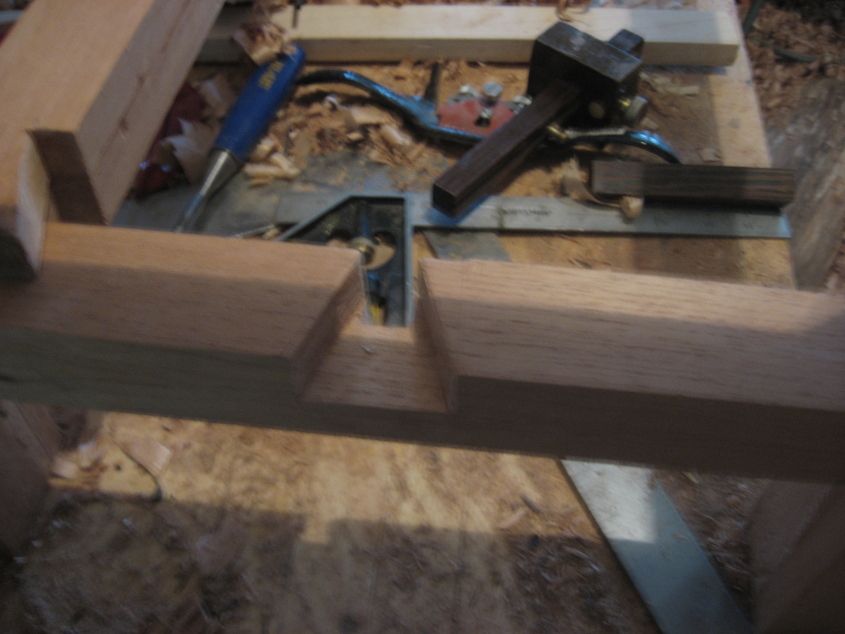

img_1966 Cut out for dovetail joint for the cross bar under seat.

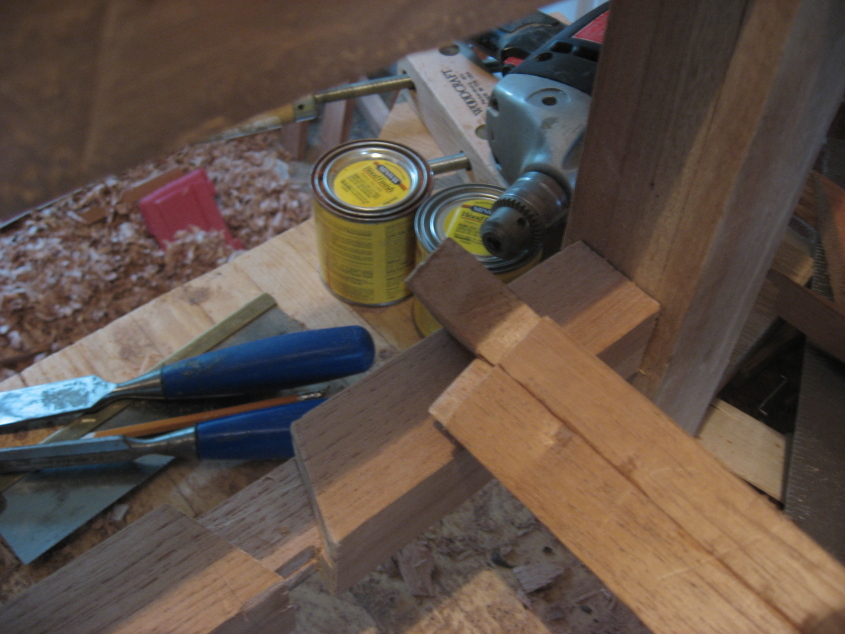

img_1968 Other direction view.

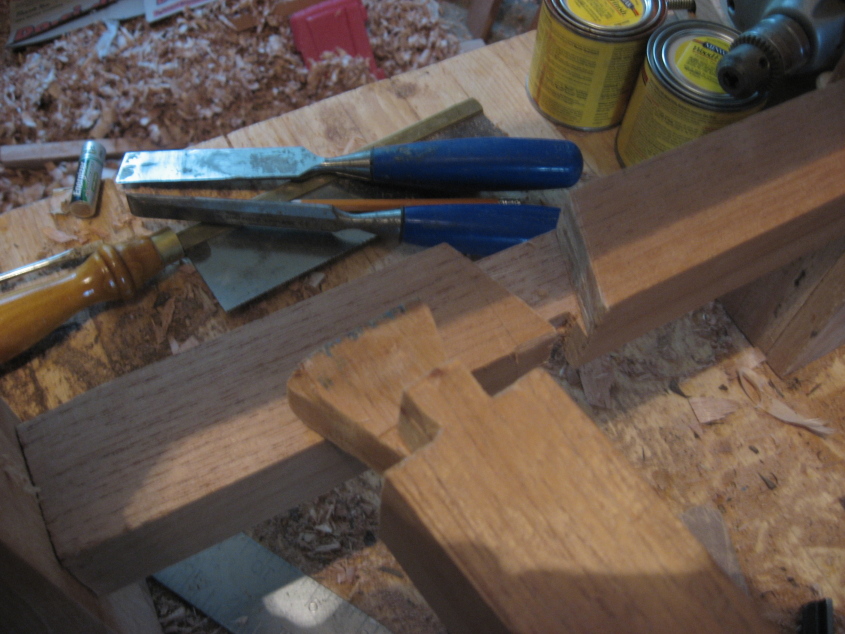

img_1969 This shows the bottom of the slot.

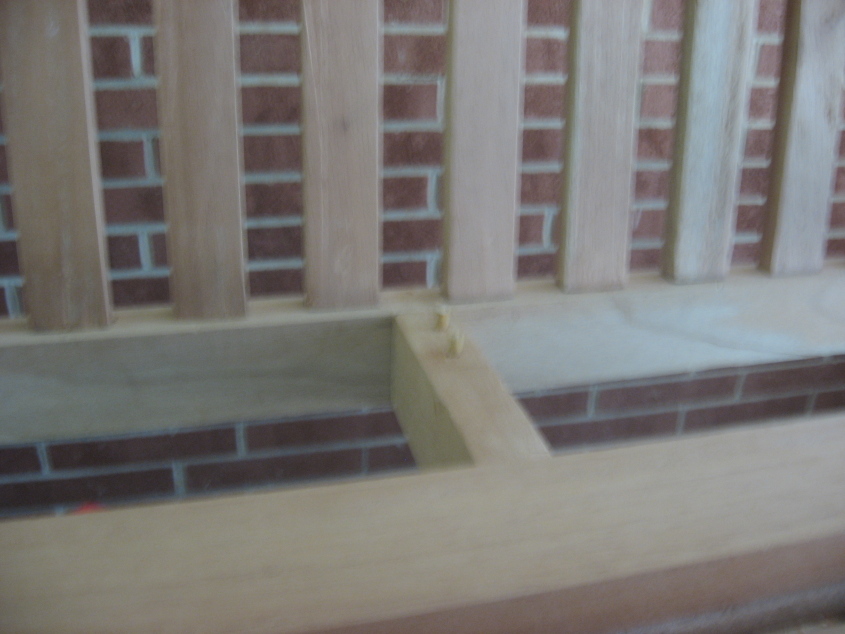

img_1970 The seat slates are attached with pegs to keep them in place.

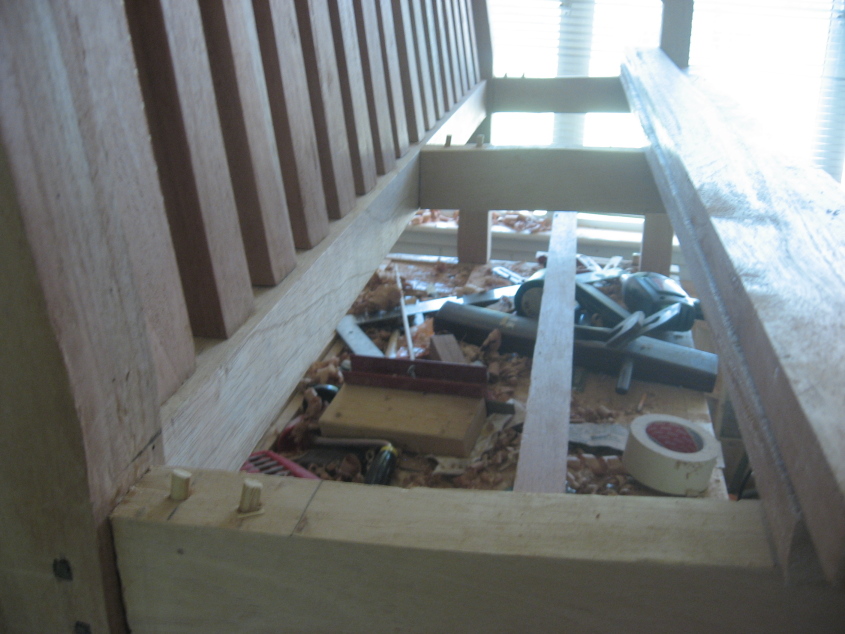

img_1971 Another view.
